19 Inch U Rack Server Cooling modules specially designed using experience of Fourdot Coolings™, We are providing high end cooling experience in limited spacing. Cooling modules available from front exhaust cooling to top exhaust cooling. Airflow rate varies from 88 CFM to 1200 CFM.

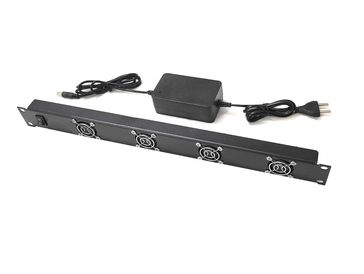

Support : 19Inch Rack Mount Modules
Type : 1U Rack Mount server cooling
Size (mm) : L 550 X H 40 X D 25mm
Speed Control : Yes (Manual)
Power Adaptor : 12V 3Amp (Included)
Material : 1mm Mild Steel
Fan Spec : 40X20mm - 4
Airflow Rate : 88CFM (Max)
Noise Level : 50dB (Max)
Hardware : Bolt-M5x15-4,
Cage Nut-10X10-M5

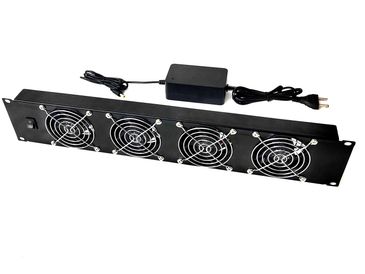

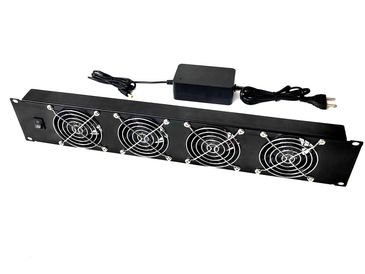

Support : 19Inch Rack Mount Modules
Type : 2U Rack Mount server cooling
Size (mm) : L 550 X H 80 X D 30mm
Speed Control : Fixed
Power Adaptor : 12V 3Amp (Included)
Material : 1mm Mild Steel
Fan Spec : 80X25mm - 4
Airflow Rate : 120CFM (Max)
Noise Level : 30dB (Max)
Hardware : Bolt-M5x15-4,
Cage Nut-10X10-M5

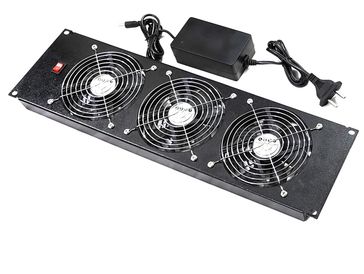

Support : 19Inch Rack Mount Modules
Type : 3U Rack Mount Server Cooling
Size (mm) : L 550 X H 130 X D 30mm
Speed Control : Fixed
Power Adaptor : 12V 3Amp (Included)
Material : 1mm Mild Steel
Fan Spec : 120X25mm - 3
Airflow Rate : 270CFM (Max)
Noise Level : 32dB (Max)
Hardware : Bolt-M5x15-4,
Cage Nut-10X10-M5
Type : 1U 19Inch Rack Mount Server Cooling
Depth (mm) : 550mm
Temperature Control : 1 Thermostat
Power Cable : Yes (Included)
Material : 1.5mm Mild Steel
Fan Spec : 4000RPM 92X38mm - 6
Airflow Rate : 600CFM (Max)
Noise Level : 50dB (Max)
Hardware : Bolt-M5x15-4,
Cage Nut-10X10-M5
Type : 1U 19Inch Rack Mount Server Cooling
Depth (mm) : 750mm
Temprature Control : 2 Thermostat
Power Cable : Yes (Included)
Material : 1.5mm Mild Steel
Fan Spec : 120X38mm - 12
Airflow Rate : 1200CFM (Max)
Noise Level : 50dB (Max)
Hardware : Bolt-M5x15-4,
Cage Nut-10X10-M5
