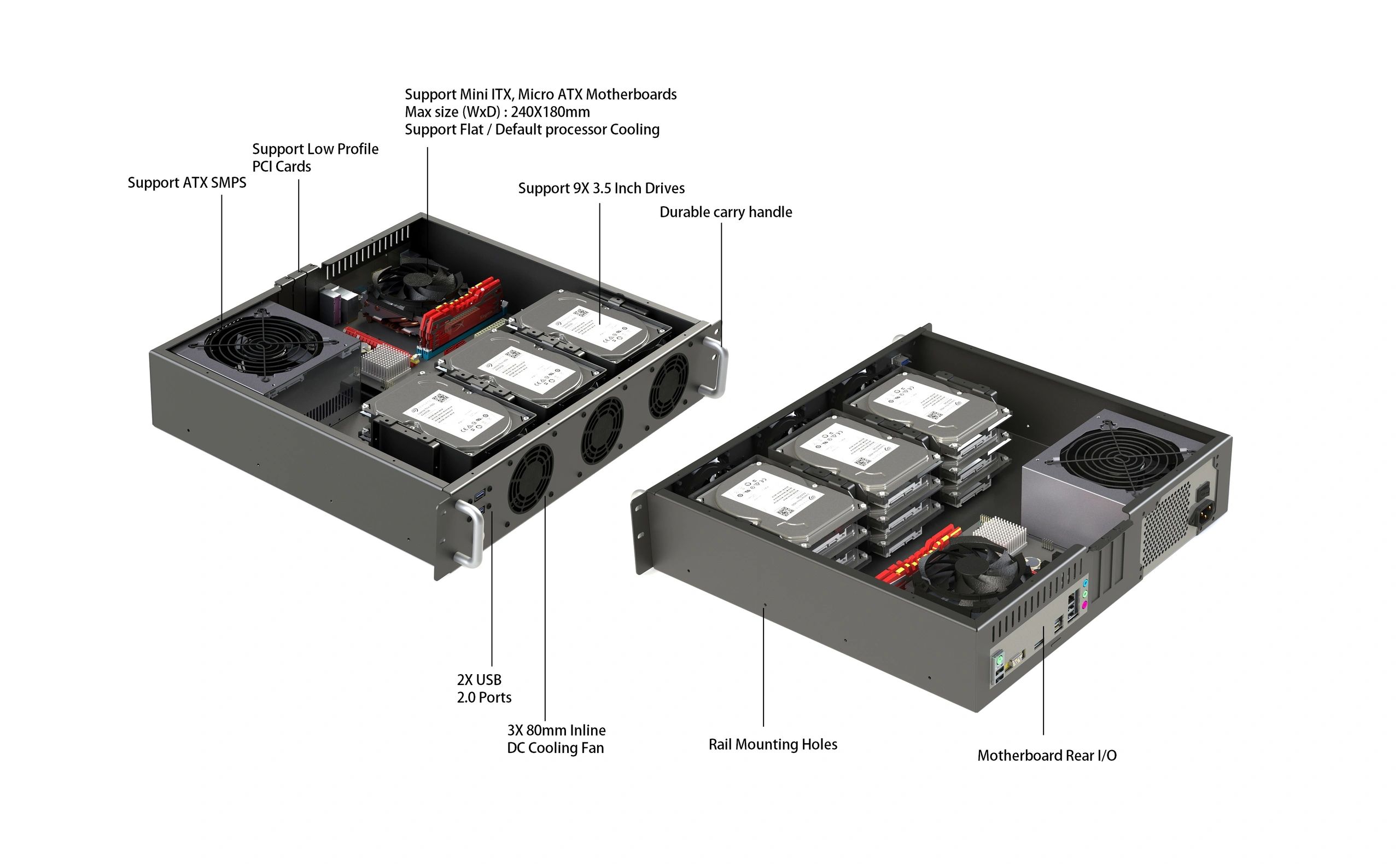

This 2U rack mount server case is designed for rackmount 2U NAS server which supporting upto 9 drives. This case support mini ITX and micro ATX motherboard, This case support 1 ATX SMPS. Built with 3 Nos of 80mm cooling fans and 2 Nos USB 2.0 at the front. This case suppport low profile PCI cards and graphic cards.
Front cooling : 3 Nos 80mm Exhaust Cooling Fan
Power button : Glow type power button
USB Ports : 4 Nos USB 2.0 Ports
Dimension (DHWmm) : 446x95x406mm
Weight (KG) : 5 KG
Color : Textured Black powder coated
Material : 1.5mm Industrial Grade steel

In defauilt this case comes with support upto 9X 3.5" Drives.
To place 2.5" drives, buy SSD mounting adaptor additionaly

This case support Mini ITX and Micro ATX, motherboards upto 240x180mm (WxDmm)

This case support upto 1 Nos Low Profile GPU, Max Length 180mm.

This case support 1 Nos ATX SMPS upto length 160mm.

This case support XtremeMiner's telescopic railmount kit for easy slide in-out function.

This case support upto 80mm tall processor cooler.

This case build with 3 Nos 80mm Cooling Fan running @2500rpm.

This case build with 4X Low profile PCI slots, to extract max possibilities from a motherboard.
